3.5 inch TFT LCD display with 54pinRGB interface and 80/80/80/80 viewing angle

Product Description:

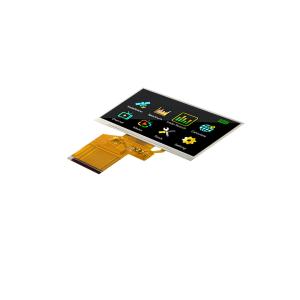

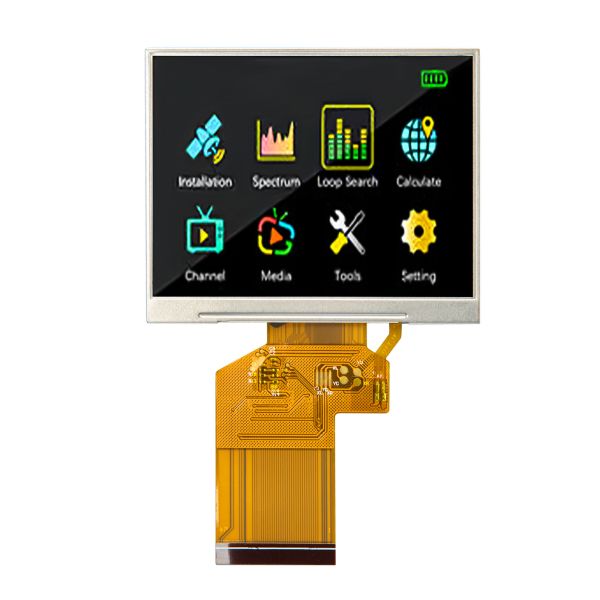

HC035IB70032-D46 is a 3.5-inch IPS display in regular shape. This display possesses the resolution of 320*240 pixels, which enable it present various information contents clearly and accurately. With a brightness of 700nits and a contrast ratio of 800:1, this display is not inferior in terms of color performance. This display’s active area of 70.08mm*52.56mm and viewing angle of 80/80/80/80(L/R/T/B) allow users to see clear images from all angles. Besides, the HC035IB70032-D46 can be used in some extreme environments where the temperature fluctuates between -20℃ and 70℃. And the 54Pin RGB interface and the outline size of 76.90mm*63.90mm*3.20mm also make it suitable for bench-type digital multimeter, vital signs monitor, swimming pool water quality rapid analyzer and transmittance detector.

General Specification:

Pin assignment:

Electrical Characteristics

Product drawings:

Customization:


FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
